01

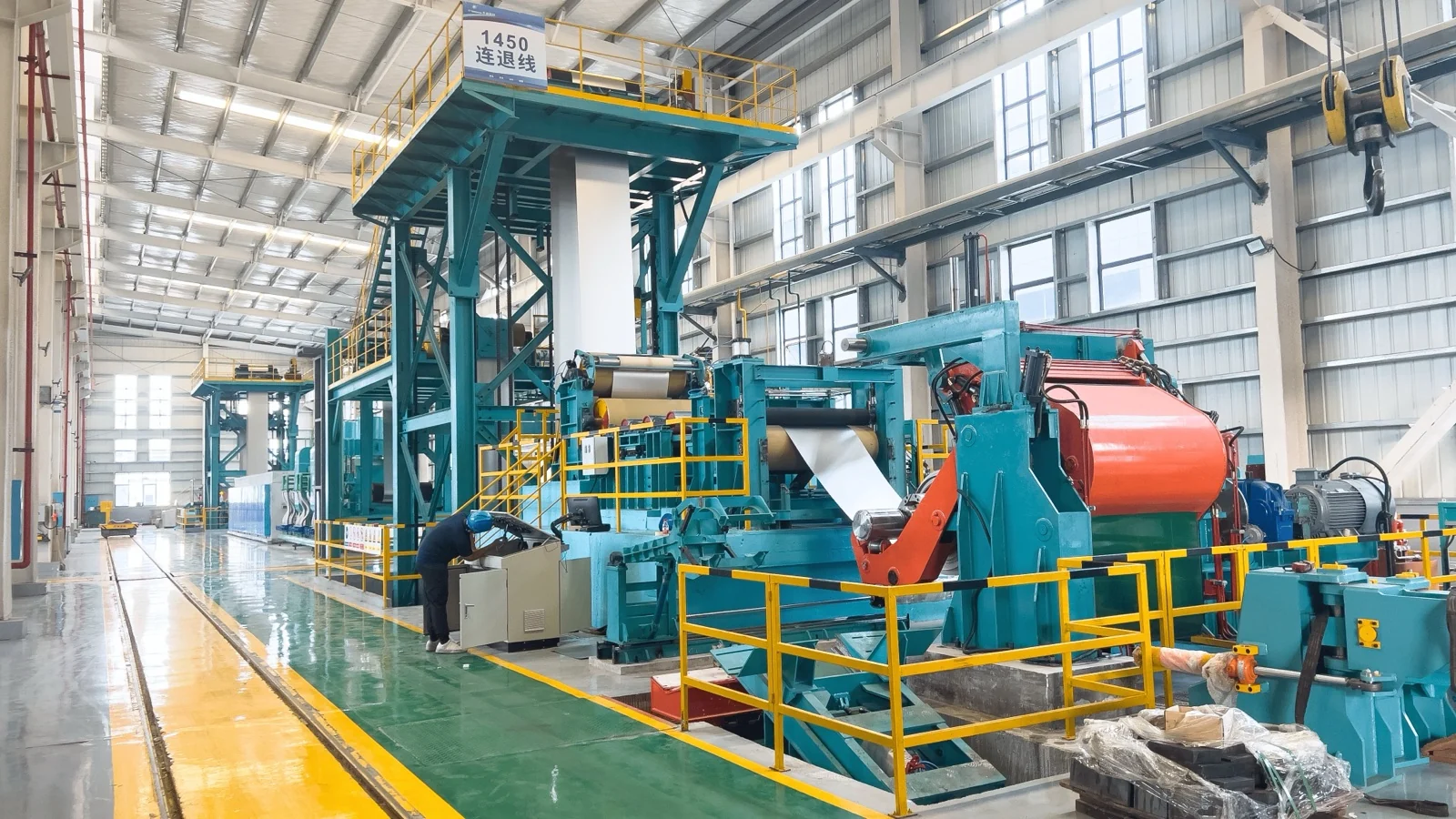

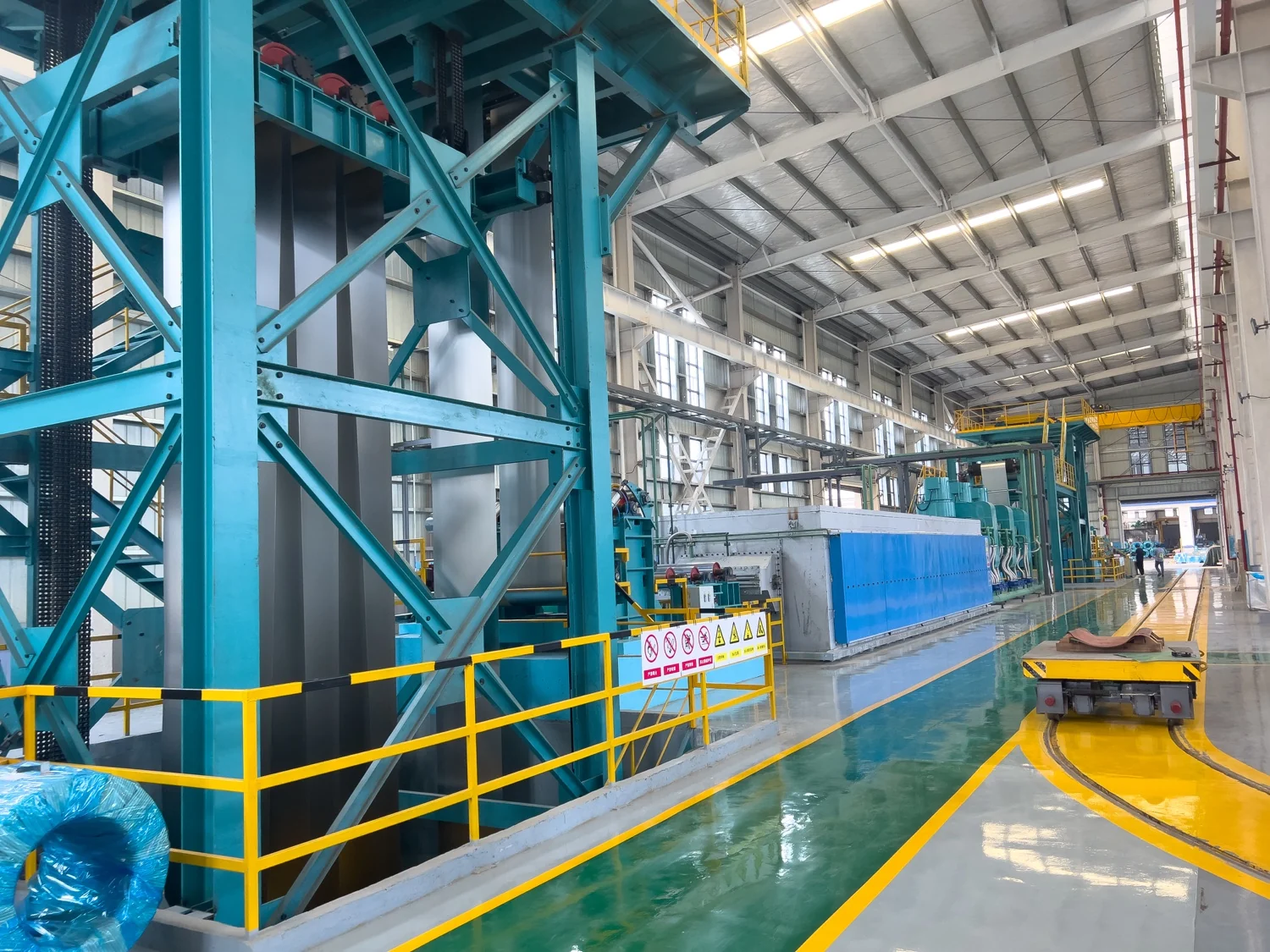

Vertical Accumulator BAL
Vertical strip storage for coil changes, stable tension and high uptime.
Vertical accumulator Controlled atmosphere 10-120 m/min
BAL systems for BA / 2BA strip production

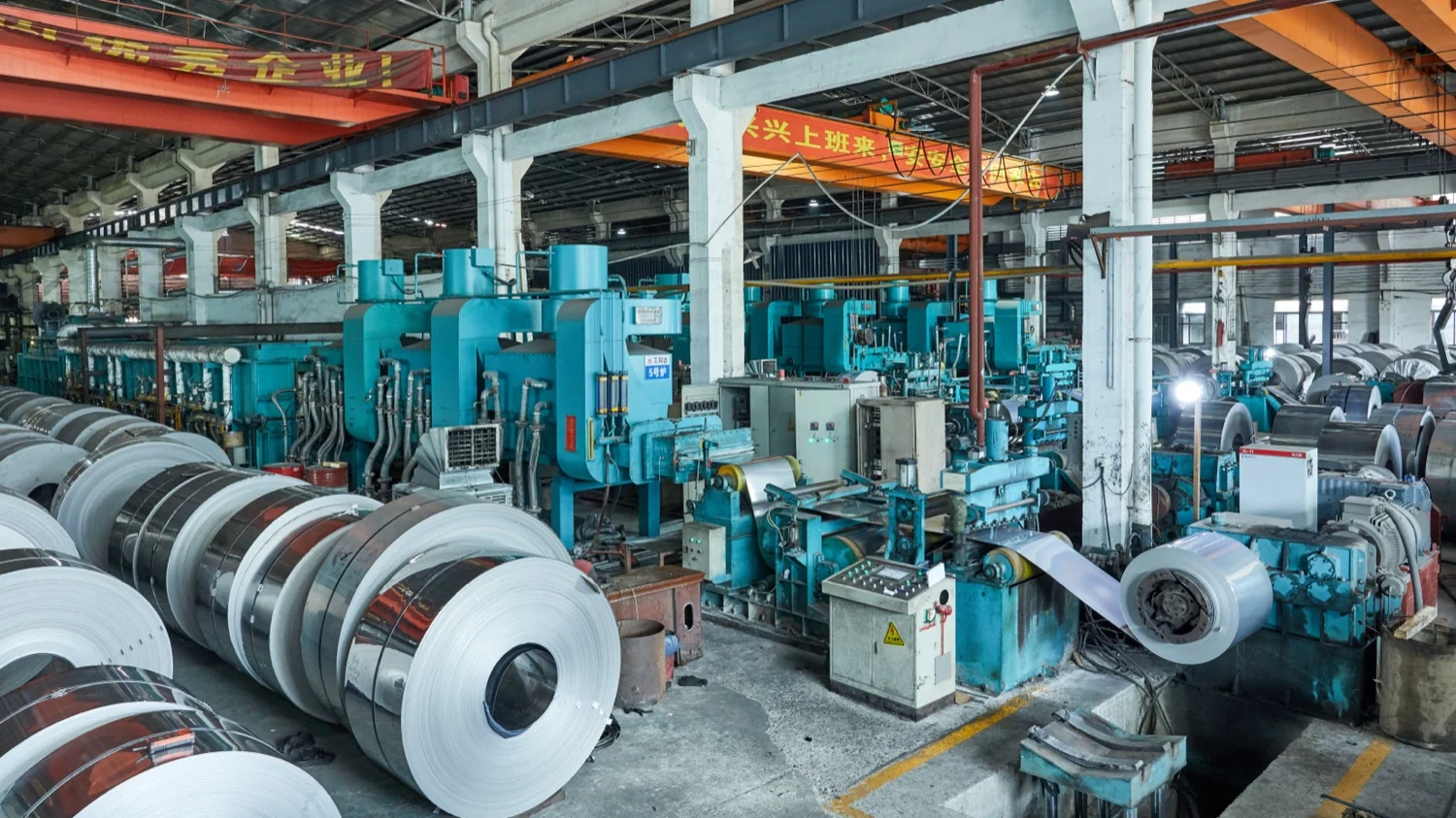

Bright Annealing Lines

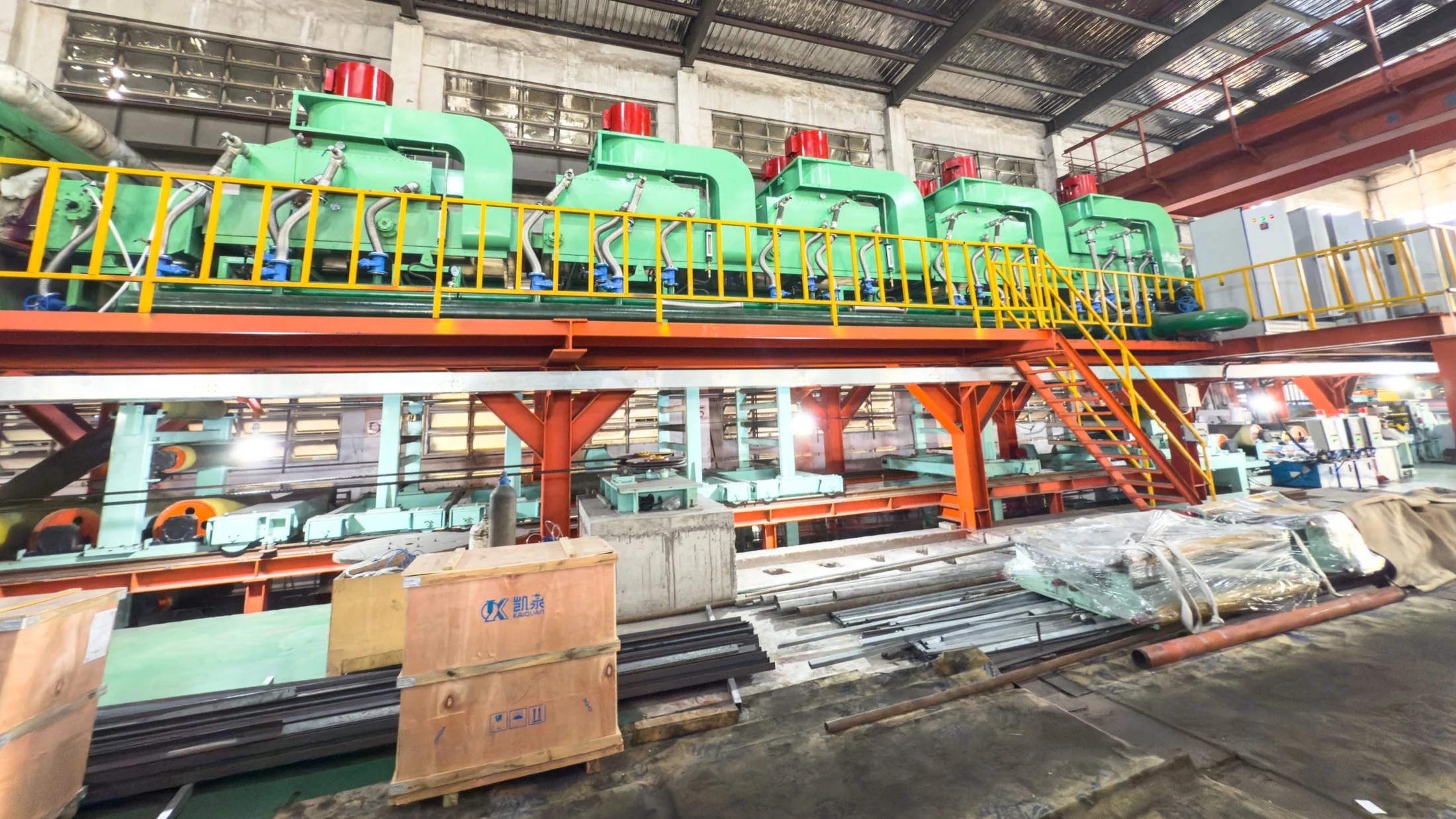

Continuous BAL systems for stainless steel strip, BA / 2BA finish and controlled-atmosphere heat treatment.
Process control Core data for first layout.
±2°C Heating-zone control target
<10 Atmosphere target, ppm
23-27 Reference gas use, m3/t
>98% Yield target
Line selection
Select the line type.
Choose by accumulator layout, heating energy, workshop limits and stainless strip output.
02

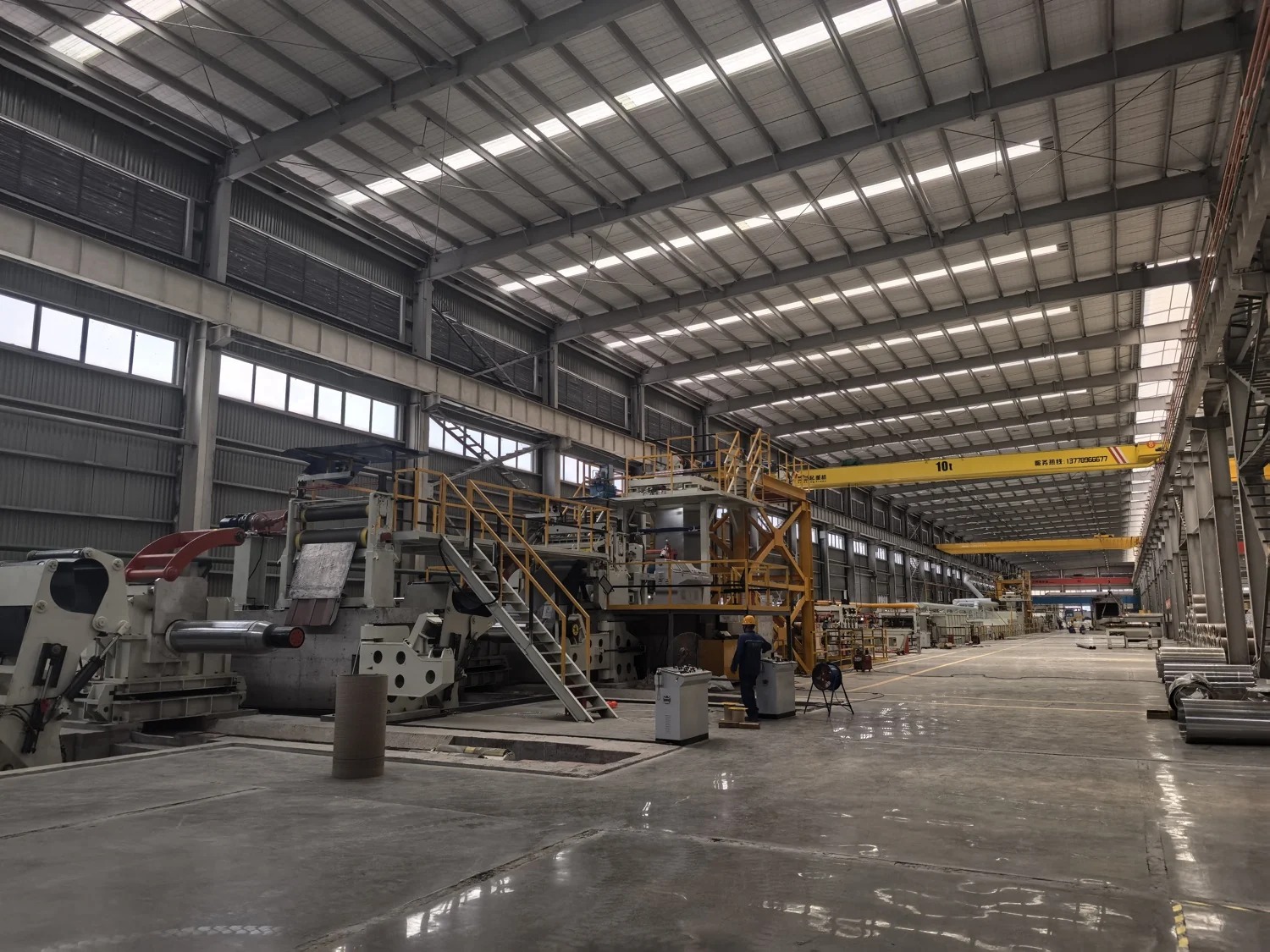

Horizontal Accumulator BAL
Horizontal storage for retrofit layouts, low-height plants and easier access.
Horizontal accumulator Retrofit layout BA strip line
03

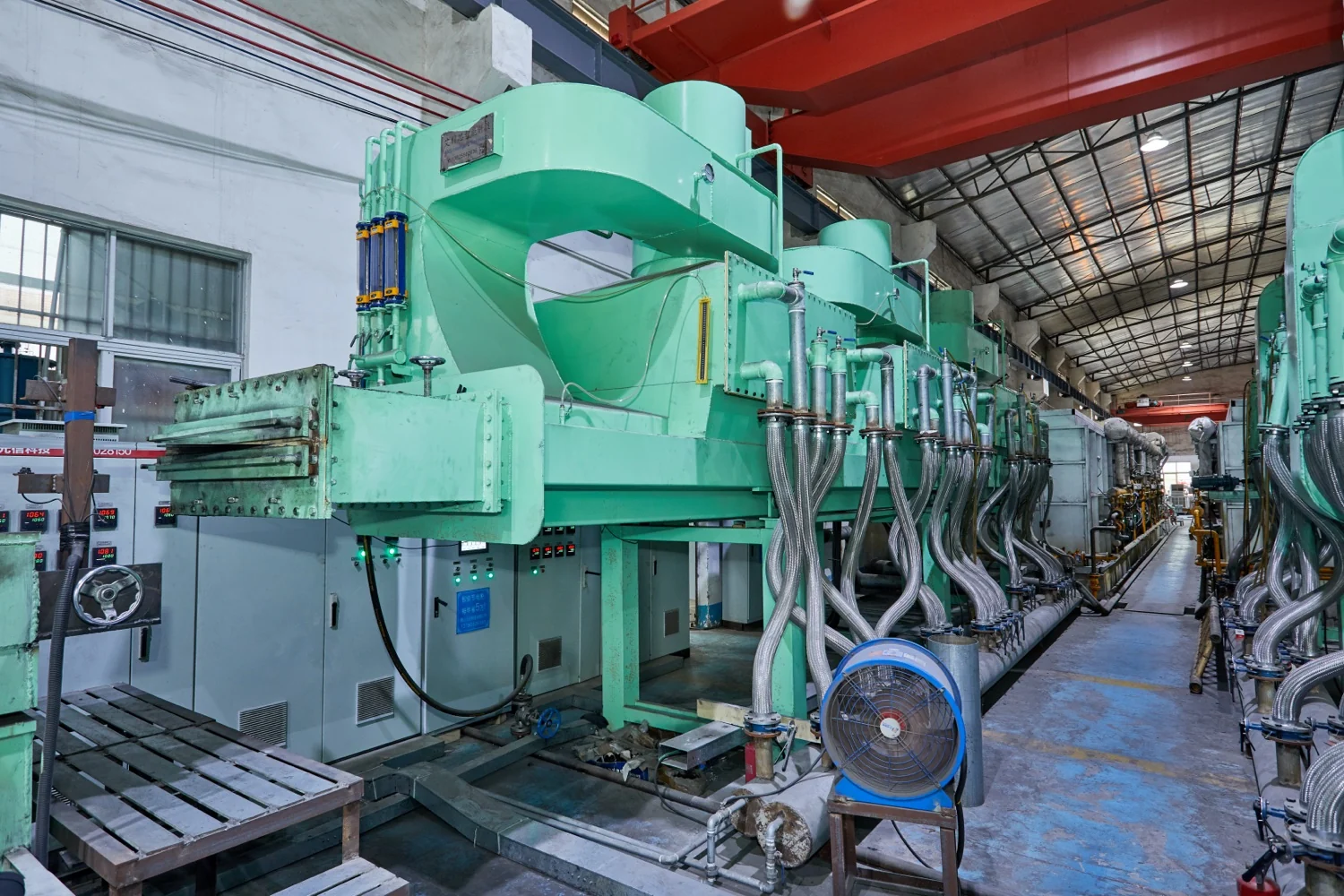

Gas Bright Annealing Furnace
Energy-saving natural gas heating for continuous bright annealing.
Natural gas heating Low gas consumption Energy saving furnace
04

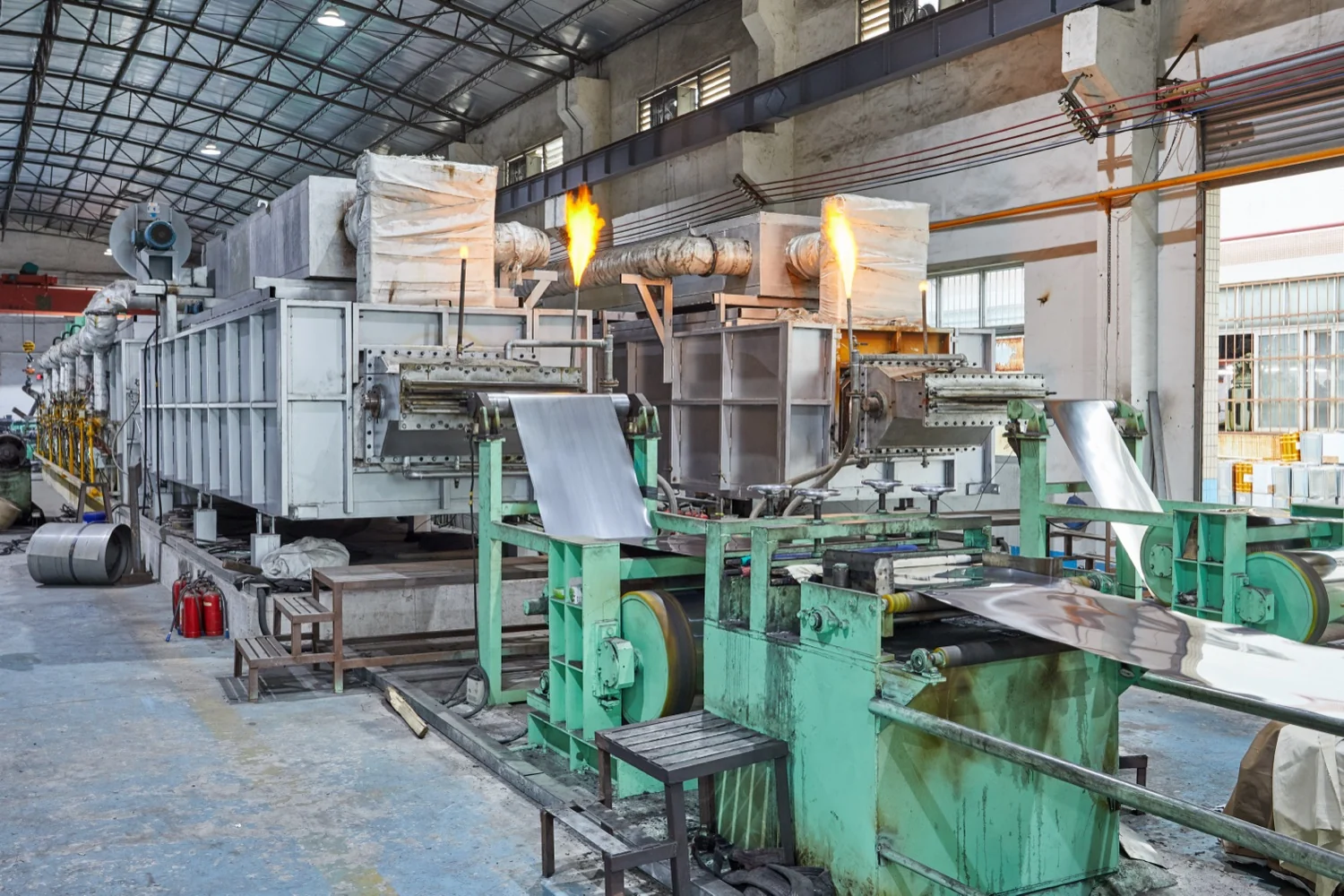

Electric BAL
Electric heating with multi-zone control and automated production records.
Electric heating Multi-zone control Process data logging
Process architecture
Line process map.
A BAL is a complete strip-processing route: entry, storage, controlled-atmosphere furnace, jet cooling and recoiling.
01 / ENTRY
Entry
Pay-off, centering, welding and tension preparation.
02 / STORAGE
Accumulator
Vertical or horizontal storage keeps the furnace running.
03 / HEAT
Furnace
Controlled-atmosphere heating for bright strip surface.
04 / COOL
Jet cooling
Airflow and temperature control support flatness.
05 / EXIT
Recoiling
Inspection, shearing, tension control and recoiling.
Engineering baseline
Built for BA strip.
AKS configures each line around strip size, grade, hardness target, atmosphere route and plant footprint.
| Material | 200, 300 and 400 series stainless steel by project review |
|---|---|
| Temperature | 750-1100°C configured process range |
| Atmosphere | Nitrogen, hydrogen, dissociated ammonia or argon |
| Automation | PLC, HMI, alarms, process logs and energy monitoring |
Operating case
What buyers compare.
Most projects are judged on output, fuel cost, strip shape, cooling result and uptime.
| Decision factor | AKS reference target | Typical market issue |
|---|---|---|
| Throughput | 10-11 t/h reference on matching projects | Speed, tension or cooling bottlenecks |
| Gas consumption | 23-27 m3/t reference range | 30+ m3/t when recovery is weak |
| Strip flatness | Lower center-wave and edge-wave risk | Uneven cooling or surface yellowing |
| Line availability | 24/7 operation and >98% target | Slowdowns increase cost per ton |
Business outcome
Control becomes margin.
Lower cost per ton, stable surface finish and fewer quality losses.
m3/t gas saving
Combustion tuning and heat recovery reduce fuel demand.
Capacity upside
Stable speed and fewer stops support larger coil programs.
Yield target
Temperature, atmosphere and cooling protect bright finish.
Send your strip range.
Send grade, width, thickness, coil weight, speed target, energy route and layout limits.
